When investing in a whole-home energy storage system, choosing the right battery generation can drastically impact your system’s lifespan, placement, and long-term return on investment.
Hoymiles recently expanded its low-voltage lineup by introducing the next-generation Hoymiles 16kwh Battery LB-16D-G3, a direct upgrade to the highly popular LB-16D-G2.
While both models deliver the exact same 16.08 kWh storage capacity using high-safety Lithium Iron Phosphate (LiFePO4) chemistry, the newer G3 model brings massive overhauls to environmental durability, cycle life, and thermal resilience.
In this comprehensive comparison, we break down the critical differences in specifications, installation flexibility, and overall value to help you decide if the G3 upgrades are worth the investment or if the time-tested G2 remains the smarter choice for your home.
The Hoymiles 16kwh Battery, LB-16D-G3 offers a longer lifespan of up to 8,000 cycles, superior outdoor IP65 weatherproofing, and increased parallel scalability up to 16 units. While both low-voltage Lithium Iron Phosphate (LiFePO4) batteries share the exact same 16.08 kWh energy capacity and 314 Ah cell size, the G3 model features a more compact form factor alongside improved thermal and structural management.
Click here for the product data sheet: LB-16D-G3 Datasheet.
Hoymiles 16kwh Battery
Specification
LB-16D-G2
LB-16D-G3
Total Energy
16.08 kWh
16.08 kWh
Life Cycle (@ 25°C)
6,000 cycles
8,000 cycles
Environmental Protection
IP21 (Indoor only)
IP65 (Indoor & Outdoor)
Max Units in Parallel
15 units (241 kWh)
16 units (257.28 kWh)
Dimensions (W x H x D)
500 x 880 x 240 mm
410 x 886 x 236 mm
Voltage Range
42.0 V to 57.6 V
44.8 V to 58.4 V
Thermal Management
Standard operating range
Optional heating for cold climates
Key Upgrades in the Hoymiles 16kwh LB-16D-G3
Significantly Longer Lifespan
The G3 expands longevity to 8,000+ life cycles (at 90% Depth of Discharge), compared to the 6,000 cycles offered by the G2. This translates to several extra years of daily cycling.
Outdoor-Ready

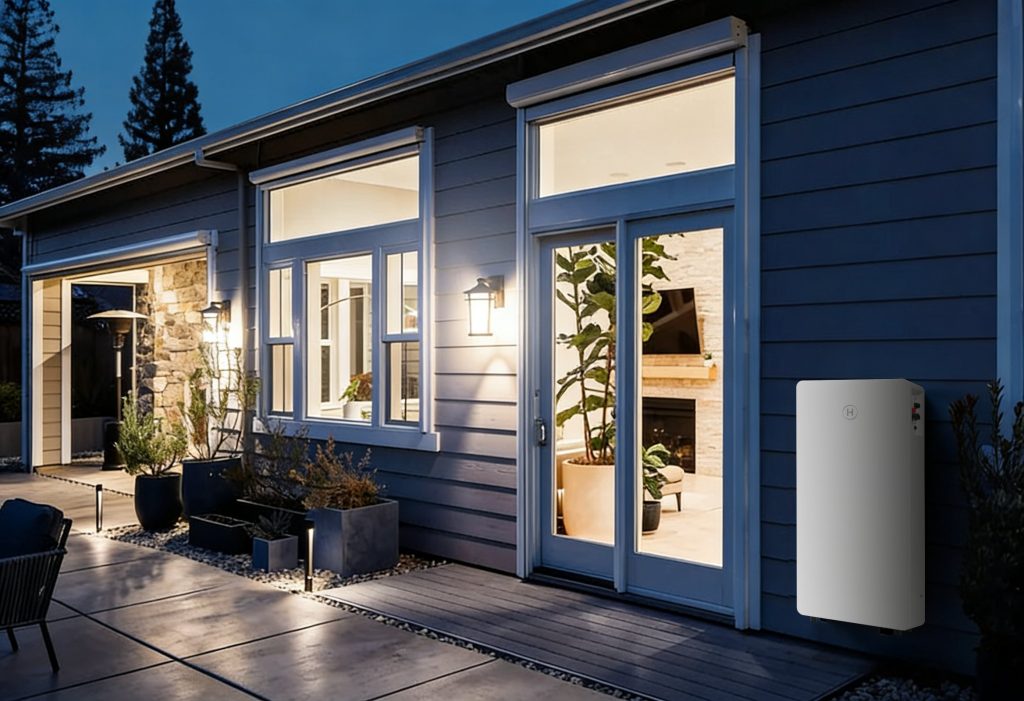

The G2 utilizes an IP21 rating, restricting its installation to indoor, dust-free spaces. The G3 upgrades this to a robust IP65 rating, protecting the unit against dust and water jets for flexible indoor or outdoor installation.
Intelligent Heating Function
To prevent lithium plating in freezing temperatures, the G3 introduces an optional intelligent heating function that keeps the cells at optimal temperatures down to -20°C.
Higher Max Scalability
Large properties can link up to 16 G3 batteries in parallel for a maximum capacity of 257.28 kWh, whereas the G2 maxes out at 15 parallel units (241 kWh).
Slimmer Design
The G3 design shaves 90 mm off the width and 4 mm off the depth compared to the G2, making it noticeably sleeker and easier to wall-mount or floor-stand in tight utility areas.
Our Recommendation
Choose the LB-16D-G2 if you are on a strict budget, plan to install the battery exclusively in a temperature-controlled indoor garage or utility room, and do not require massive parallel storage scaling.
Opt for the LB-16D-G3 if you require outdoor installation and want the best possible long-term value from the extended 8,000-cycle life span.
